ICON 120

Store/Manual Chairs/Rehasense

£1 450.00

In stock

Product Details

RRP £1495 our price £1250

Please call to order in your custom sizes on 07538 095431

Key Features

Phantom Black

Seat width adjustment range 16” to 19”

Higher performance

Tilt and recline

Elevating leg rests and comfort calf pads

Seating system designed to give high grade pressure relief

Adjustable headrest

Crash tested

2 Year Warranty (limited)

Description

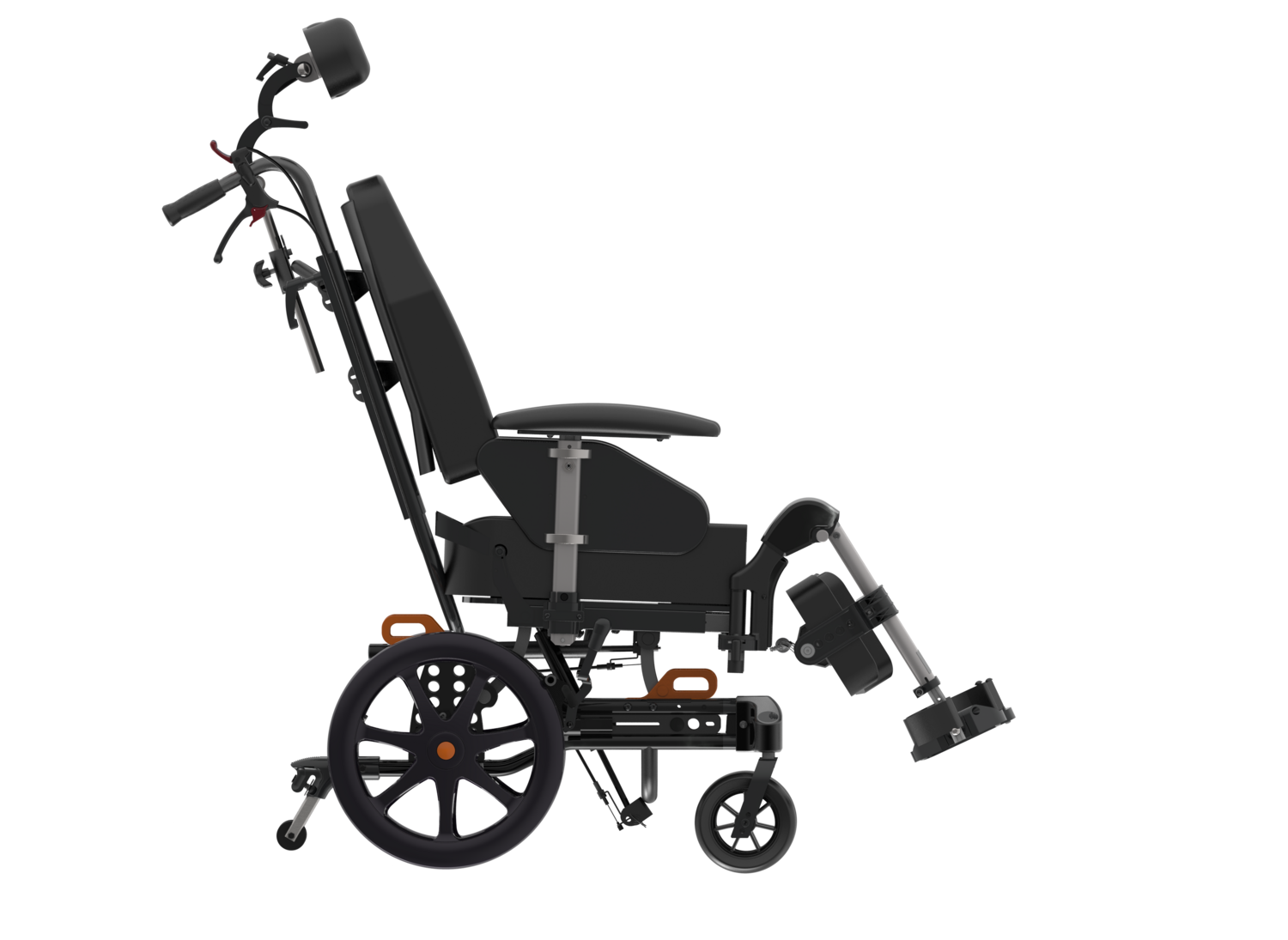

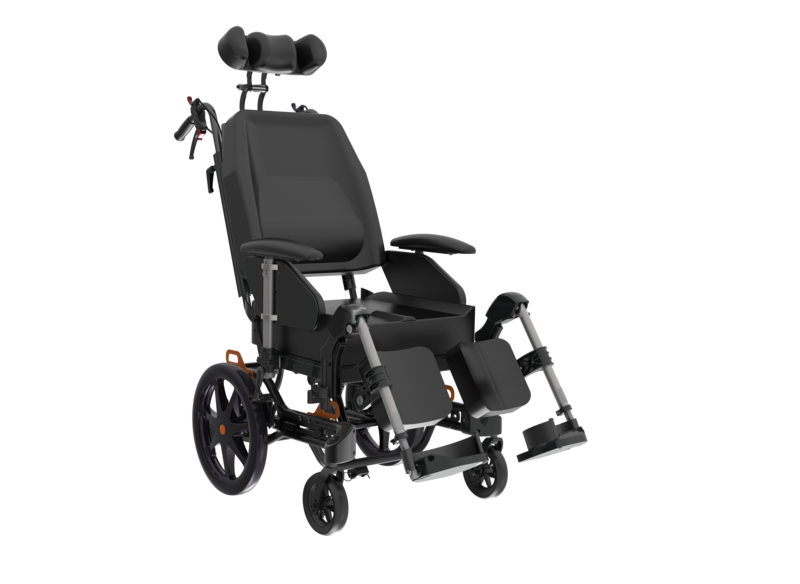

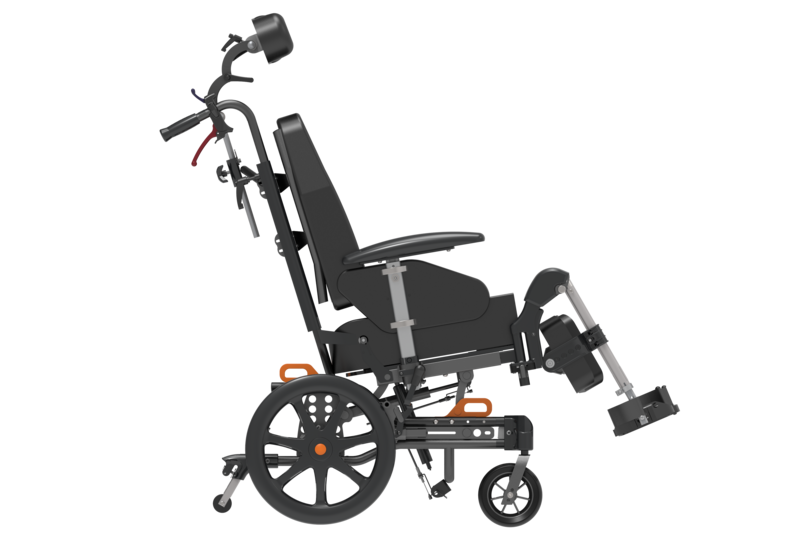

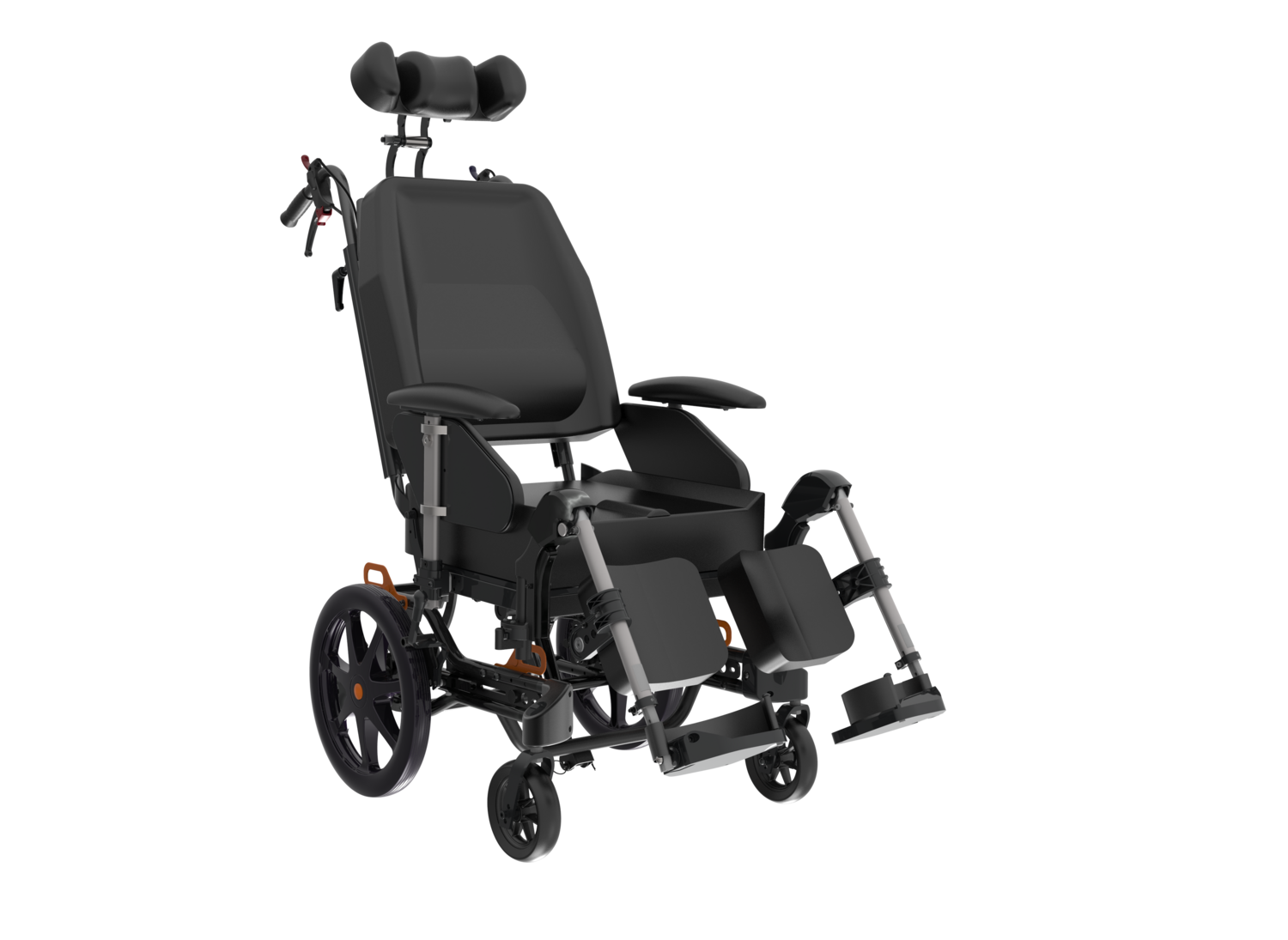

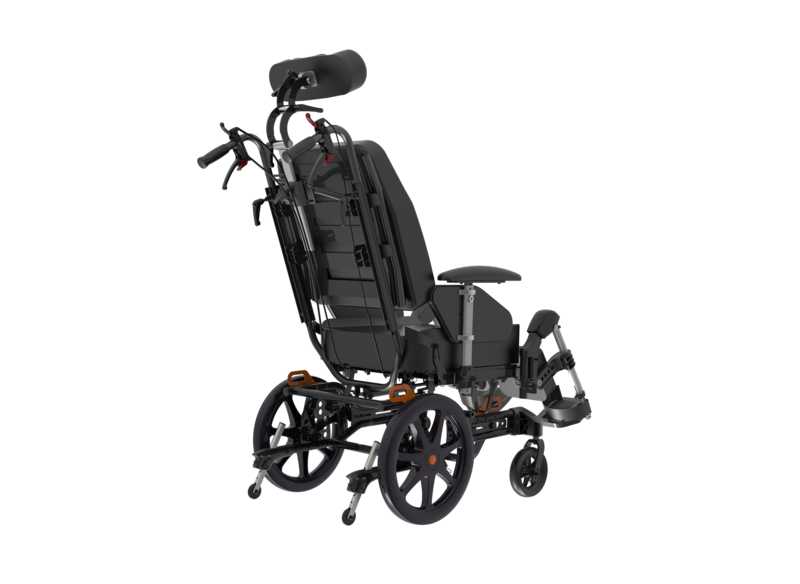

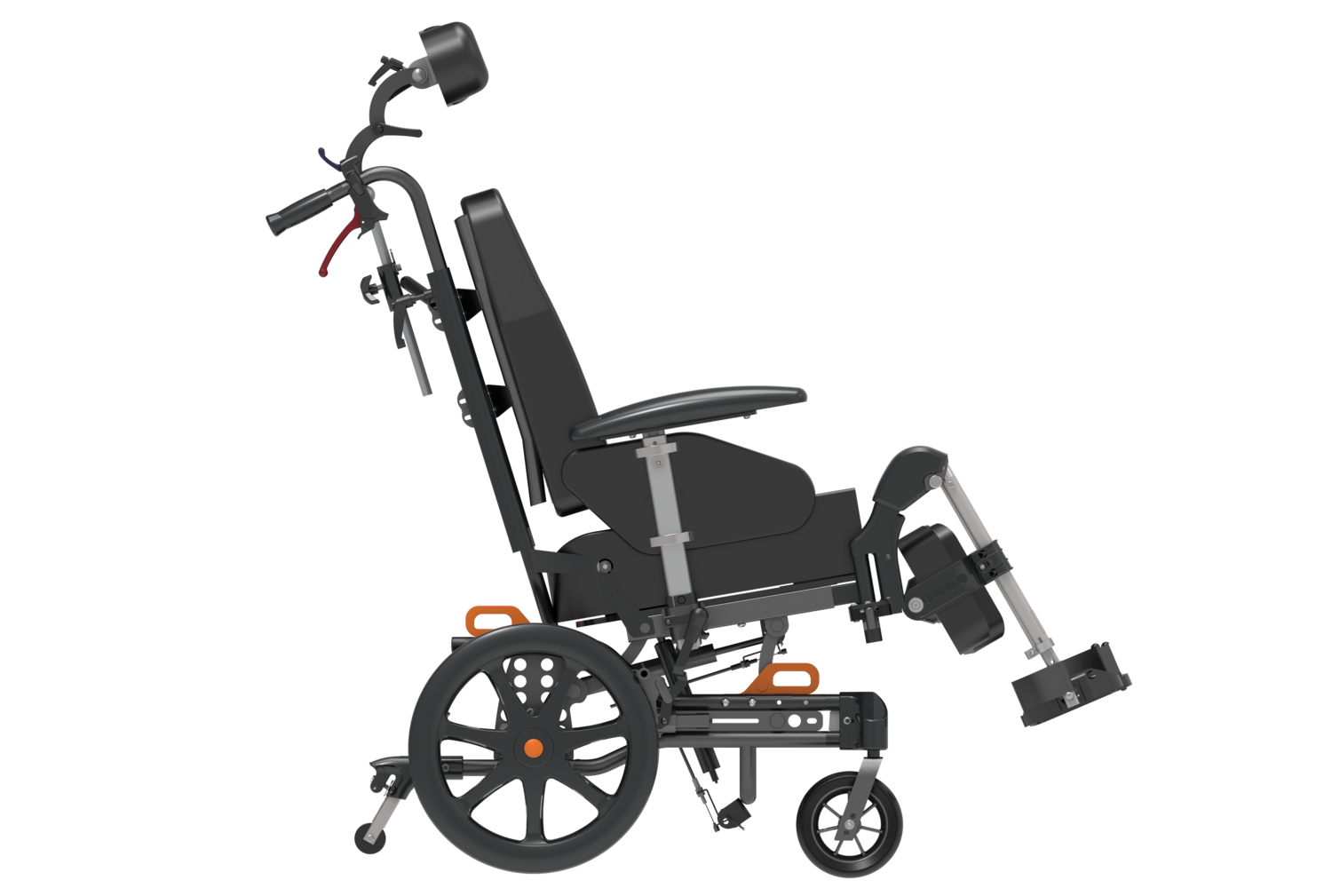

ICON 120 is a high performance comfort wheelchair with extensive set up options to fit a wide range of users.

All day comfort is ensured with the reclining back and tilt in space seat when combined with pressure distributing seat and back cushions.

The arm rests and head rests are covered in soft and pliant PU fabrics to minimise pressure.

A new family of wheelchairs and accessories based upon modular design and characteristics. As part of the ICON Mobility System, utilizing modular design and interchangeable parts across the ICON family, the ICON 120 can cater for many different user types and functional needs.

Features

For the Attendant Propelled set up, the rear wheel diameter is 16″ and comes with a solid PU tyre

Front castor includes 7” PU puncture proof tyres

Safe Weight Limit (SWL) is 180 kg

Brake options include attendant drum brakes and knee brakes with a short lever

Height adjustable armrests in a range of 27 – 40 cm

Push handles are height adjustable

Multiple castor positions within the front fork housing

Standard multi adjustable headrest is a soft PU covered foam

The wheelchair is equipped standard with elevating legrests and comfort calf pads.

Adjustments

Seat width adjustment by moving the arm rest supports in/out by up to 7.5cm (40cm – 47.5cm)

Seat depth is adjustable in a range between 36 cm – 46cm

Recline range is 30 dg with 2 pre-set options for a total range of 83 – 126 dg

Tilt in space range is 26 dg with 4 pre-set options for a total range of – 5 dg to + 28 dg

Tilt and recline locking pins supplied as standard

The pre-sets can be changed by the dealer

The Drop-In arm rest is height and width adjustable, with soft PU covered foam for full comfort

Elevating leg rests with calf pads, both light and elegant in design. The construction is very rigid and provides excellent support

Seating

Seat and back cushion are anatomically shaped with a multi density, laminated foam construction

The back provides good lateral and lumbar support

The seating system is designed to give a high grade of pressure relief

Both the backrest and seating cushions come fitted as standard with a waterproof and machine washable PU cover

Specification

Model TR (16-19" x 15-19")

Maximum User Weight
180kg/28stone

Back Rest Height
41-73cm

Seat Width Range
40-47.5cm

Seat Depth Range
36-46cm

Total Length
106cm

Length (without leg rest)
81cm

Height with Back Rest Folded
62cm

Back Rest Recline Range
83-126°

Tilt Range
-5 -+ 28°

Transportation Weight
22kg

Weight
41kg

Further Reading

View Brochure for more information

View User Manual
